Includes: Complete stack assembly and instruction manual.
Uses 3” clear acrylic sieves (sold separately).

Particle Size Range: 20 μm to 125 mm
Sieve Sizes: Standard 8 inch diameter
Sieve Capacity: One (1) 8-inch sieve*
Vacuum Range: Adjustable 0 to 20 inches vacuum (supplied by a standard "ShopVac", included).
Timer: Digital 0 to 60 minutes
Wet Sieving: No
Shipping dimensions (approx): ASPA 14”x14”x20” 34 lbs + Vacuum 16”x16”x22” 18 lbs

*All sieves, except CSC Brand sieves, require damping o-ring for proper operation of instrument.

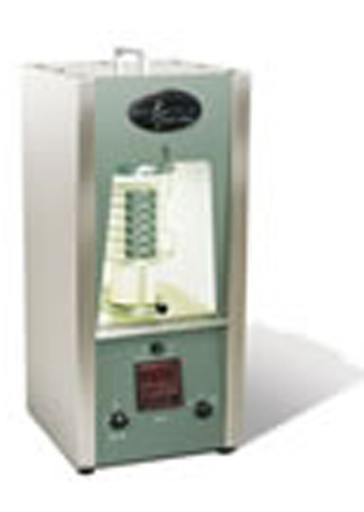

Recommended for use with the Sonic Sifter when sifting powders 45 microns and finer, or with powders of any distribution showing high electrostatic charges. Takes the place of one standard series sieve (5/8 inch height). The operating principle is the introduction of a high-speed shock wave sent across the sieving medium. The net result is a further reorientation of particles, a shearing action on agglomerated particles, and a reduction of screen blinding (plugged openings).

Particle Size Range: 20 μm to 125 mm
Sieve Sizes: Standard 8 inch diameter
Sieve Capacity: One (1) 8-inch sieve*
Vacuum Range: Adjustable 0 to 20 inches vacuum (supplied by a standard "ShopVac", included).
Timer: Digital 0 to 60 minutes
Wet Sieving: No
Shipping dimensions (approx.): ASPA 14”x14”x20” 34 lbs + Vacuum 16”x16”x22” 18 lbs

*All sieves, except CSC Brand sieves, require damping o-ring for proper operation of instrument.

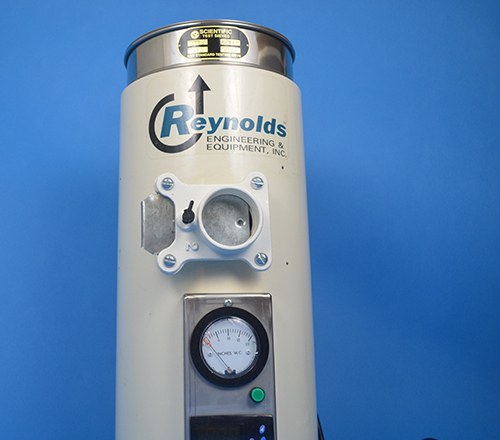

Vacuum siever, 100-240 Volt 50-60Hz.
Included: Lid and small mallet.
Industrial vacuum is sold separately (ZMAIR-VAC1).
Uses 1 standard 8-inch diameter sieve (not included).

For up to 8 full-height 200mm (8-inch) diameter sieves. Quick-release clamping system. Sieves sold separately.
230 V, 50 Hz

For up to 8 full-height 200mm (8-inch) diameter sieves. Quick-release clamping system. Sieves, lid and receiver pan not included.
[DROP SHIPMENT]

Titan 450 Sieve Shaker, 230V / 50 Hz
Sieves, lid and receiver pan are sold separately

Titan 450 Sieve Shaker, 110/120V, 60 Hz
Sieves, lid and receiver pan are sold separately

- Electromagnetic drive
- Adjustable amplitude
- Can be floor standing or bench mounted
- Suitable for wet or dry sieving
- Digital controls
- Range 20 µm - 40 mm
- Drive / sieving motion: electromagnetic 3D
- Max. batch / feed capacity: 6 kg
- Sieve diameters: 100 mm / 150 mm / 200 mm / 250 mm / 300 mm / 315 mm / 3" / 8" / 12"
- Max. number of sieves: 6 full height / 12 half height
- Max. height of sieve stack: 450 mm
- Quick-release clamping system included
Net Weight ~45kg.
Sieves sold separately.
230V/50Hz. Also suitable for 220 V, 50 Hz.

- Electromagnetic drive
- Adjustable amplitude
- Can be floor standing or bench mounted
- Suitable for wet or dry sieving
- Digital controls
- Range 20 µm - 40 mm
- Drive / sieving motion: electromagnetic 3D
- Max. batch / feed capacity: 6 kg
- Sieve diameters: 100 mm / 150 mm / 200 mm / 250 mm / 300 mm / 315 mm / 3" / 8" / 12"
- Max. number of sieves: 6 full height / 12 half height
- Max. height of sieve stack: 450 mm
- Quick-release clamping system included
Net Weight ~45kg.
Sieves, lids and receiver pans sold separately.

Capacity:
• 3-inch, 8-inch, or 200mm diameter sieves
• 8 full-height or 15 half-height sieves, plus one receiver pan and cover
NOTE: Sieves, Receiver Pan and Lid are not included.

Capacity: 3"/8"/200mm diameter sieves - 8 full height or 15 half height, plus one receiver pan and cover.
Sieves, Receiver Pan and Lid are not included.

Includes: Complete stack assembly and instruction manual.
Uses 3” clear acrylic sieves (sold separately).

Includes: Complete stack assembly and instruction manual.
Uses 3” clear acrylic sieves (sold separately).

Includes: Complete stack assembly and instruction manual.
Uses 3” clear acrylic sieves (sold separately).

Capacity:
• 3-inch, 8-inch, or 200mm diameter sieves
• 8 full-height or 15 half-height sieves, plus one receiver pan and cover
NOTE: Sieves, Receiver Pan and Lid are not included.

RO-TAP models RX-29 and RX-20 must be mounted on this test stand, or a concrete foundation or heavy bench capable of supporting 200 lbs. Moderate tension of the mounting bolts is all that is required.

Features a unique two dimensional operation: a horizontal, circular motion and a vertical, tapping motion. This special action allows particles to stratify and “seek” critical openings in the test media.

SPECIFICATIONS:
- Oscillations per Minute: 278 ± 10
- Oscillations Displacement: 1-1/8 x 7/16 inch
- Taps per Minute: 150 ± 10
- Timer: 99-minute digital timer/clock, tolerance 0.1 seconds
- Dimensions: 28 in. wide x 21 in. deep x 25 in. high (71 cm x 54 cm x 64 cm)
- Weight: 180 lbs. (82 kg)
- Testing Applications: 2 inches through US #635 mesh (20 µm)
- Capacity: 6 full-height sieves with full-height pan, or 13 half-height sieves with half-height pan

Sieves, pan, and lid are sold separately.
