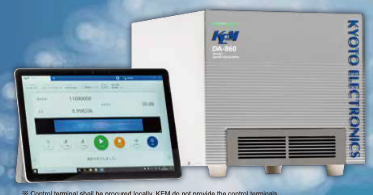

Density/Specific Gravity Meter (860)

Density/Specific Gravity Meter ASTM D1250,D1475,D4052,D4806,D5002,D5798,D5931 -DI Support Feature as Standard -Simultaneous multiple measurements -Remote operation by a separated control terminal -Improvement of the measurement cell visibility with a built-in camera Configuration: 1. DA-860 main unit 2. Pump & Sampling unit type = 120799701/Sampling Unit with Accessories (Semiautomatic with 2 liquids) 3. Decoration panel = Stripe 4. Printer (mini) is NOT INCLUDED 5. Requires a computer (laptop or Surface Pro) = NOT INCLUDED < Desktop/Laptop PC Spec > OS.................................Windows® 10 Pro 64 bit CPU..............................> = Core i3 10th Generation Memory........................> = 8GB HDD or SSD..................> = 300GB Display Resolution.......> = 1280 x 768 Interface(LAN / USB)...> = 1000Mbps < Tablet PC Spec > OS.................................Windows® 10 Pro 64 bit CPU.............................. > = Intel® Pentium® Gold 4425Y Memory........................> = 4GB HDD or SSD..................> = 64GB Display Resolution.......> = 1280 x 768 Interface(LAN / USB)...> = USB3.0 x 1ch Specifications: -Measurement Method; Resonate Frequency Oscillation -Measurement Range; 0 ~ 3 g/cm3 -Temperature Range; 0 ~ 100°C (32 ~ 212°F) -Accuracy; Density; 0.00002 -Accuracy; Temperature; ±0.02 -Repeatability; SD 0.000001g/cm3 -Viscosity Correction: YES -Min sample required; Approx. 1.0mL (by syringe), Approx. 2.0mL (by pump) -Min Measurement Time; 1) Approx. 10 seconds (Manual)　*4 -Display; 1) Tablet / PC connection (LCD resolution: 1,280 x 800 or higher) 2) Shows density, SG, oscillation frequency, temp, concentration, other messages. -Sampling; 1) Manual by syringe 2) Auto by pump -Method; Saves up to 1000 different methods in built-in memory including measurement parameters, density auto-correction, concentration conversion, etc. -Density Auto-Correction; 1) Saves conversion table or formula at your desired temperatures according to your samples. 2) Temperature conversion table preprogrammed according to ASTM standard for petroleum, petroleum products and lubricating oils. -Auto Conversion; 1) Between concentration and density. 2) Between temperature and density. -Statistics; 1) Auto or manual calculation of mean value, SD and coefficient. 2) Recalculation, data deletion. -Interfaces; 1) LAN: × 1; Tablet / Personal computer (PC) 2) USB 2.0: × 1; USB flash drive, Thermal Printer (DP-600)*5 3) RS-232C: × 2; Dot Matrix Printer (IDP-100)*4, Autosampler (AS-8030) -Options; 1) Printer: DP-600, IDP-100 2) 30 Position Autosampler: AS-8030 -Data I/O; 1) USB flash drive as data storage medium. 2) Application Notes provided in USB flash drive. -Wetted Materials; PTFE, borosilicate glass, SUS304 -Ambient Condition; 1) Temperature: 5 to 35 °C (41 to 95 °F) 2) Humidity: 85%RH or below (No condensation allowed.) -Power Supply; DC 24V 5A (Main Unit) AC 100 to 240 V ± 10%; 50/60 Hz (Comes with AC adapter.) -Power Consumption; 40 W (max. 120 W, min. 20 W) -Dimensions; 295 (W) × 330 (D) × 255 (H) mm (11.6 (W) × 13.0 (D) × 10.0 (H) inches) -Weight; 19 kg (41 lbs)
