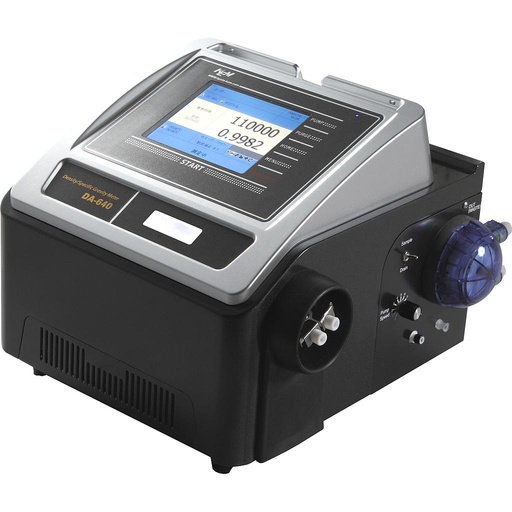

Density Meters

ASTM D1250,D1475,D4052,D4806,D5002,D5798,D5931

Quickest measurement in 20 seconds Minimum sample of 1.0 mL
Viscosity correction for high-viscosity samples*1 Touchscreen operation
Comes with Density Standard Liquid Equipped with sampling*2 & dry pump Completely ready for use Customizable display & sound
Easy operation & maintenance-free

-Measurement Range; 0 ~ 3 g/cm3
-Temperature Range; 0 ~ 96°C (32 ~ 204.8°F)
-Accuracy; Density ±1x10-4 g/cm3 (0.0001 g/cm3)/ temperature ±0.05 °C (±0.09 °F)
-Repeatability; SD 5x10-5 g/cm3
-Min sample required; Approx. 1 mL (Syringe) / Approx. 2mL (Pump)
-Measurement time; to 4 mins (Manual) / 2 to 10 mins (Auto)
-Resolution; Density & SG 0.0001/ temperature 0.01
-Viscosity Correction: YES
-Method; Saves up to 100 different methods in built-in memory
-Data I/O; USB flash drive as data storage medium, app notes provided in USB flash drive
-Dimensions; 320 (W) x 365 (D) x 250 (H) mm (12.6 (W) x 14.4 (D) x 9.8 (H) inches)
-Weight; 18 kg (39.7 lbs)

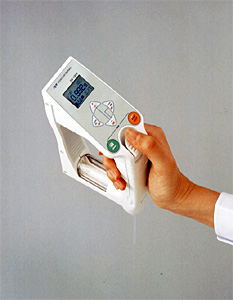

KEM DA-130N Portable Density Meter/Specific Gravity Meter
-MEASURING METHOD: Resonant frequency oscillation
-MEASURING RANGE: 0.0000 to 2.0000g/cm3
-ACCURACY: ±0.001g/cm3
-RESOLUTION: 0.0001g/cm3
-TEMPERATURE RANGE: 0 to 40.0° C (32 to 104° F)
-BACKLIT DISPLAY: Density, temp-compensated density, SG, temp-compensated SG, Brix%, Alcohol wt%, Alcohol vol%, %H2SO4, API degree,
Baume degree, Plato degree, Proof degree, Temperature in ° C/° F, Sample No.,
-TEMPERATURE COMPENSATION: Yes
-AUTO-CALIBRATION: Yes
-SAMPLING BY: Syringe-type hand pump
-DATA STORAGE: Up to 1,100 samples
-POWER SUPPLY: Alkaline battery LR03 (AAA) 1.5V 2pcs
-BATTERY LIFE: Approx. 90 hours
-WEIGHT: Approx.(0.794 lbs)

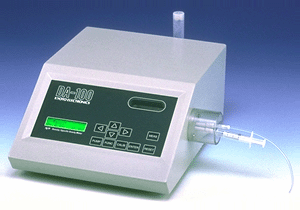

KEM MODEL: DA-100 density/specific gravity meter
The built-in thermostatic control makes measurement stable in resulting values.
Thus, human error is eliminated in addition to easy operation and high precision.

>Measurement in a short period of time
>With built-in thermal control
>High precision thermal sensor is installed in measuring cell
>Concentration can be obtained by conversion.

Range: 0 - 3 g/cm3
Accuracy: ±0.001 g/cm3
Temperature: 15 - 40°C, 59 -°F
Display: 16 X 2 LCD with back light
Contents of display: Density, relative gravity, measurement temperature
Interface: RS232C single channel

Density/Specific Gravity Meter
ASTM D1250,D1475,D4052,D4806,D5002,D5798,D5931

-DI Support Feature as Standard
-Simultaneous multiple measurements
-Remote operation by a separated control terminal
-Improvement of the measurement cell visibility with a built-in camera

Configuration:

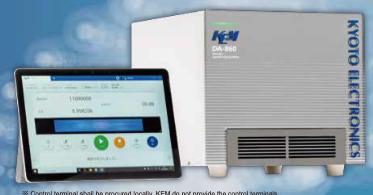

1. DA-860 main unit
2. Pump & Sampling unit type = 120799701/Sampling Unit with Accessories (Semiautomatic with 2 liquids)
3. Decoration panel = Stripe
4. Printer (mini) is NOT INCLUDED
5. Requires a computer (laptop or Surface Pro) = NOT INCLUDED
< Desktop/Laptop PC Spec >
OS.................................Windows® 10 Pro 64 bit
CPU..............................> = Core i3 10th Generation
Memory........................> = 8GB
HDD or SSD..................> = 300GB
Display Resolution.......> = 1280 x 768
Interface(LAN / USB)...> = 1000Mbps
< Tablet PC Spec >
OS.................................Windows® 10 Pro 64 bit
CPU.............................. > = Intel® Pentium® Gold 4425Y
Memory........................> = 4GB
HDD or SSD..................> = 64GB
Display Resolution.......> = 1280 x 768
Interface(LAN / USB)...> = USB3.0 x 1ch

Specifications:
-Measurement Method; Resonate Frequency Oscillation
-Measurement Range; 0 ~ 3 g/cm3
-Temperature Range; 0 ~ 100°C (32 ~ 212°F)
-Accuracy; Density; 0.00002
-Accuracy; Temperature; ±0.02
-Repeatability; SD 0.000001g/cm3
-Viscosity Correction: YES
-Min sample required; Approx. 1.0mL (by syringe), Approx. 2.0mL (by pump)
-Min Measurement Time; 1) Approx. 10 seconds (Manual)　*4
-Display;
1) Tablet / PC connection (LCD resolution: 1,280 x 800 or higher)
2) Shows density, SG, oscillation frequency, temp, concentration, other messages.
-Sampling;
1) Manual by syringe
2) Auto by pump
-Method; Saves up to 1000 different methods in built-in memory including measurement parameters, density auto-correction, concentration conversion, etc.
-Density Auto-Correction;
1) Saves conversion table or formula at your desired temperatures according to your samples.
2) Temperature conversion table preprogrammed according to ASTM standard for petroleum, petroleum products and lubricating oils.
-Auto Conversion;
1) Between concentration and density.
2) Between temperature and density.
-Statistics;
1) Auto or manual calculation of mean value, SD and coefficient.
2) Recalculation, data deletion.
-Interfaces;
1) LAN: × 1; Tablet / Personal computer (PC)
2) USB 2.0: × 1; USB flash drive, Thermal Printer (DP-600)*5
3) RS-232C: × 2; Dot Matrix Printer (IDP-100)*4, Autosampler (AS-8030)
-Options;
1) Printer: DP-600, IDP-100
2) 30 Position Autosampler: AS-8030
-Data I/O;
1) USB flash drive as data storage medium.
2) Application Notes provided in USB flash drive.
-Wetted Materials; PTFE, borosilicate glass, SUS304
-Ambient Condition;
1) Temperature: 5 to 35 °C (41 to 95 °F)
2) Humidity: 85%RH or below (No condensation allowed.)
-Power Supply; DC 24V 5A (Main Unit) AC 100 to 240 V ± 10%; 50/60 Hz (Comes with AC adapter.)
-Power Consumption; 40 W (max. 120 W, min. 20 W)
-Dimensions; 295 (W) × 330 (D) × 255 (H) mm (11.6 (W) × 13.0 (D) × 10.0 (H) inches)
-Weight; 19 kg (41 lbs)

Borosilicate Glass Calibrated Pycnometer with Flat Bottom and Perforated Stopper. Ensure precise density measurements with this borosilicate glass pycnometer. Calibrated at 20°C, it provides accurate specific gravity readings using a known liquid density. Includes a perforated stopper and flat bottom for spill prevention.
