Contact Angle Meter

All in one Dynamic contact angle and Surface tension Analyzer
- Auto close outer wall, Ergonomic, user friendly design
- Able to density data of liquid by underwater displacement
- Fully automatic measuring process (Software control)
- Internal thermo couple for checking test liquid’s temperature
- Basic Supporting Items: (1) Zisman plots (2) Surface Energy calculation (3) Surface Tension(DuNouy Ring & Willhelmy Plate & Rod method) (4) Dynamic contact angle (5) Density (6) Sedimentation (7) Penetration (8) Powder contact angle (9) Absorption (10) Single fiber contact angle (11) Bundle fiber contact angle
- Results data can export to excel
- Circulator connection port
- Displaying entire measuring process
- Internal Circulation chamber
- Calibration function

Drop shape image analysis contact angle. Sessile drop method. Portable type, equivalent limitless sample size.
Manual, Semi-Auto, Automatic drop control system.
INCLUDES:
- Syringe (3ml:10ea)
- Needle
(27G, 22G:5/each)
- Manual
- Calibration images
- USB 3.0 Connect to Desktop PC or Laptop (Windows 7/8/10)

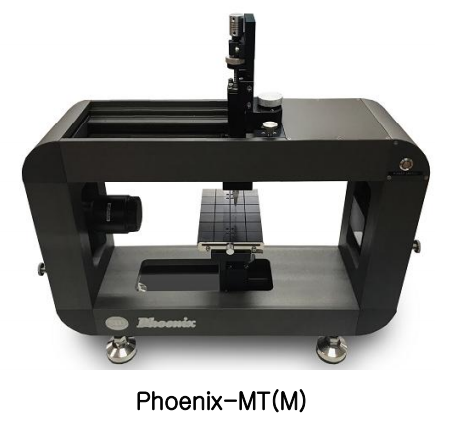

Drop shape image analysis contact angle. Sessile drop method. Portable type, equivalent limitless sample size.
Manual drop control system.
INCLUDES:
- Syringe (3ml:10ea)
- Needle (27G,22G:5/each)
- Manual
- Calibration images
- USB 2.0 Connect to Desktop PC or Laptop (Windows 7/8/10)

- MAX Sample size : 400mm(W) x 150 mm(H) x ∞(D)
- 12x Zoom lens, USB3.0 type Digital CMOS camera
- 640x 480 Pixel resolution, Frame rate: Max 500 frame/sec
- Light source : White LED module ,Camera module tilting adjuster
- Contact angle measure range : 0-180 degree,±0.1deg Accuracy
- Surfaceware9 Software for static and dynamic contact angle &
Surface energy, Surface tension by Pendent drop method,
D-base function, Data comparing function, Exact drop volume calculator Auto avoid image noise of measuring, Analyzed data export to excel., etc Advanced.
“One drop” function, Able to measuring at the same time
Drop volume control by software(Per 0.1 μℓ by glass syringe)
- Standard accessories : Syringe (3ml:10ea), Needle(27G,22G:10ea/each ), Manual, Calibration images(30, 60, 120±0.5degree)
- USB connect to Desktop PC or Notebook (Window 7/8/10)
-Device dimension : 600mm(W)x160mm(D)x550mm(H

-Camera capture speed: 640x480resolution 500FPS (USB 3.0)

-Static Contact Angle (Tangent line method 1 & 2, Trigonometric function):
Accuracy; ±0.1degree
Resolution; ±0.01degree
Range; 0~180°
Data Information; Average contact angle, left contact angle, right contact angle, drop
volume, height, baseline length, base area, measured time, wetting energy, spreading
coefficient, work of adhesion

-Dynamic Contact Angle: Tilting method (OPTIONAL)
Accuracy; ±0.1degree
Resolution; ±0.01degree
Range; 0~90°
Data Information; Work of adhesion, Advance angle, Receding angle, Hysteresis,
drop volume, etc.,

-Surface Tension: Pendant drop method
Accuracy; ±0.1mN/m
Resolution; ±0.01mN/m
Range; 1~1000mN/m
Data Information; Drop volume, Surface tension

-Surface Free Energy:
(A) G.G.F.Y: (Accuracy ±0.1mN/m) (Resolution ±0.01mN/m) (Data Information,
Surface free Energy)
(B) Owens-Wendt (Accuracy ±0.1mN/m) (Resolution ±0.01mN/m) (Data
Information, Surface free energy, Dispersive value and Polar value)
(C) Lewis[Acid/Base] (Accuracy ±0.1mN/m) (Resolution ±0.01mN/m) (Data Information, Surface free Energy, Dispersive, Polar, Acid, base value

-Capture Speed: CCD, (Range 0~500FPS) (Data Information, Basic supplied is 500FPS)

-Machine Vision Resolution: (Range 640x480) (Data Information, Basic supplied is 640x480)

-Data Export Method: Two modes of Excel export, BMP, CSV file

-Data Save Method: Save as .SZX and Excel

-Sample Stage: Fixed Stage (no movement on X,Y axis)

-Device Dimension: Comes with Standard size (small and custom size is available)

-Power Consumption: 1.LED : 8.64W

-Power: 110/220V(50/60HZ)

Dynamic contact angle and surface tension analyzer (Standard type)
- Auto close outer wall, Ergonomic, user friendly design
- Able to density data of liquid by underwater displacement
- Fully automatic measuring process (Software control)
- Internal thermo couple for checking test liquid’s temperature
- Basic Supporting Items: (1) Zisman plots (2) Surface Energy calculation (3) Surface Tension(DuNouy Ring & Willhelmy Plate & Rod method) (4) Dynamic contact angle
- Results data can export to excel
- Circulator connection port
- Displaying entire measuring process
- Internal Circulation chamber
- Calibration function
