Thermal Conductivity

K529-0002S: Wire Sensor (nichrome, chromel-alumel; 10 pairs)

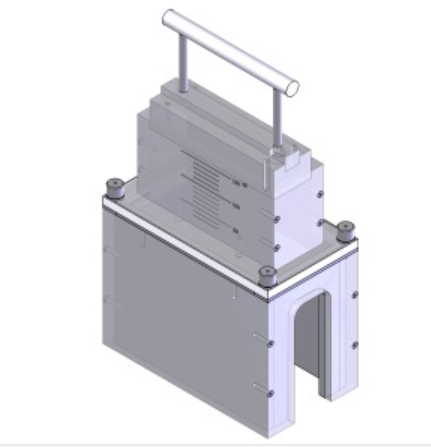

KQTM-PA1: Powder Measuring Case (PD-11 required)

With the Vessel for powder you are able to pack powders into a rectangular clear plastic container and take thermal conductivity readings of the packed powder.

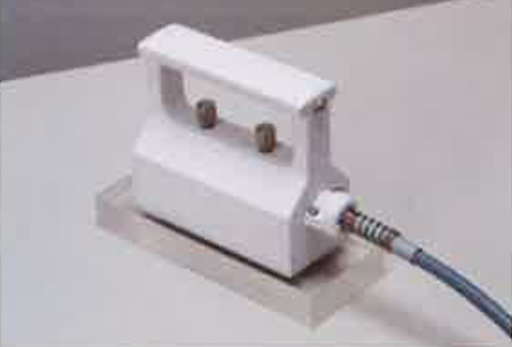

PD-11N: Standard Box Probe for QTM-700 series

Various measurements of sample types including blocks, powders and sheet material are possible with the PD-11N probe.
-Heat Insulation
-Ceramics
-Rubber
-Plastic
-Glass

Suggested standard probe; #K1206477/ PD-11N Box Type Probe
>Measurement range: 0.03 ~ 12W/(m K)
>Dimensions: 110(w) x 50(d) x 100 (h) mm
>Measurment tempeature: 5 ~ 35 degree C
>Measuremnt time: 60 seconds
>Sample size: 100x50x20 mm or more

SOFT-QTM5EW

PD-NO sensor probe for QTM-500 Thermal Conductivity Meter

K120675301: Reference Plate (Silicone Rubber)

KR3-2: Reference Plate (Polyethylene Foam)

K529-0010: Reference Plate (Muraito); appox. 5W/mK

KR1-2: Reference Plate (Clear Quartz)

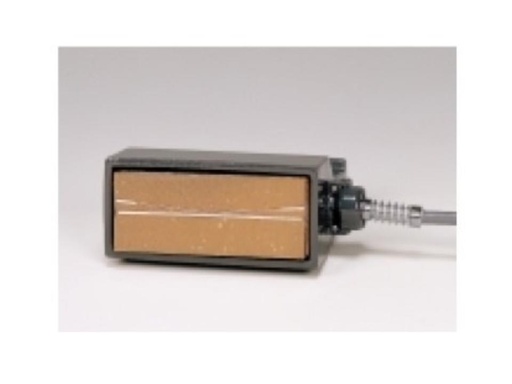

PD-13N insulated moisture-proof probe

PD-13N is a version of the PD-11N with an added insulation film. Thermal conductivity using the PD-13N probe is ideal for aqueous materials and conductive materials.
-Food
-Concrete Paste
-Metal

Optional insulated moisture-proof probe; #K120647701 / PD-13N Insulated moisture-proof probe
>Measurement range: 0.03 ~ 12W/(m K)
>Dimensions: 110(w) x 50(d) x 100 (h) mm
>Measurment tempeature: 5 ~ 35 degree C
>Measuremnt time: 60 seconds
>Sample size: 100x50x20 mm or more

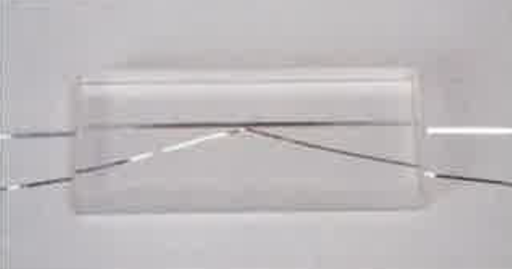

PD-31N High-temperature probe for QTM 700 series

Thermal conductivity is measured by "sandwiching" the sample material between the heater and the temperature sensor. The PD-31N is a conventional type of sensor but with additional capabilities to allow the measurement of thermal conductivity with higher temperature ranges.
-New Materials
-Firebrick
-Heat insulation materials

-Optional high-temperature probe; #K1206479 / PD-31N High-temperature probe
>Measurement range: 0.06 ~ 5W/(m K)
>Dimensions: 110(w) x 50(d) x 100 (h) mm
>Measurment tempeature: -100 ~ 1,000 degree C
>Measuremnt time: 60 seconds
>Sample size: 100x50x20 mm or more 2 pieces
