Automatic Titration

K439-5264: BJP20 tube (black)/2000

APB-600-KF

KEM AT­-710B Automatic Potentiometric Titrator with Standard Preamp.

Specifications
­Type: Automatic Potentiometric Titrator

­Model: AT­710B

­Product configuration: AT­710 w/standard preamp, w/Magnetic stirrer
(combined pH electrode and temperature compensation electrode included)

­Detection range:
1) Potentiometric : ­2000mV to +2000mV
2) pH : ­20.000 to 20.00pH
3) Temperature : 0 to 100°C

­Titration mode: Auto Titration, Auto Intermit, Intermit, Stat
­Method: Standard method 20. (Max 2 methods can be linked)

­Kinds of titration: Potentiometric (acid/base, redox, precipitation), Photometric,
Polarization, Conductivity

­Titration form: Full titration (Auto EP detection), EP Stop, Level Stop

­Special application: Measurement of electrode potential (pH, potential), Acid
dissociation constant (pKa)

­Key operation: Sheet Key on the main unit

­Displays:
1) White LED­backlit LCD
2) English / Japanese / Mandarin Chinese /Korean / Russian / Spanish
3) 1­channel display

­Calculation: Concentration of content, statistics data processing (mean, SD
and RSD) and automatic averaging of blank and factor value

­Data Storage: 50 samples

­GLP conformance: Registration of operator / Record of check results / Record
of electrode calibration / Verification of burette capacity / Management of
conduction time

­Burette size: 20mL glass burette with brown cover (Standard) Optional burette
units: 10mL, 5mL, or 1mL

­Burette accuracy:
50mL burette(Auto dispenser) ± 0.5mL,
20mL burette ± 0.02mL reproducibility ± 0.01mL
10mL burette ± 0.015mL reproducibility ± 0.005mL
5mL burette ± 0.01mL reproducibility ± 0.003mL
1mL burette ± 0.005mL ; reproducibility ± 0.001mL

­External I/O:
RS­232 port x 2: for Dot matrix printer, Electronic balance, Data Capture
Software (SOFT­CAP)
SS­BUS × 1: for Multiple sample changer, APB
ELE. × 1: for Smart electrode
TEMP.COMP. × 1: an Input terminal for the temperature sensor to correct reagent
volume, sensor Pt100, temperature reading accuracy: ±0.5°C (burette 1 only)
USB × 1: for USB flash drive, Thermal printer, Keyboard, Barcode reader, Foot
switch, USB HUB, Android device

­Extensibility:
Automatic piston burette: Can control max 10 burette drives (Including two
built­in burette drives)
Multiple sample changer: CHA­700 series

­Ambient condition:

1) Temperature: 5 to 35°C
2) Humidity: 85%RH or below (no condensation)

­Power source: AC100 ­ 240V ±10% 50/60 Hz
­Power consumption: 20W

­Dimensions:
Titration unit: 141(W) × 296(D) × 367(H)mm
Printer: 106(W) × 180(D) × 88(H) mm

­Weight:
Titration unit: Approx. 4.0kg
Printer : Approx. 0.4kg

­Conformity standard: CE marking EMC: EN61326­1 LVD: EN61010­1 RE
Directive Burette unit EBU FCC Part15 SubpartC FCC ID : 2ABSVEBU01

APB-620; Automatic Piston Burette for Auto Titrator

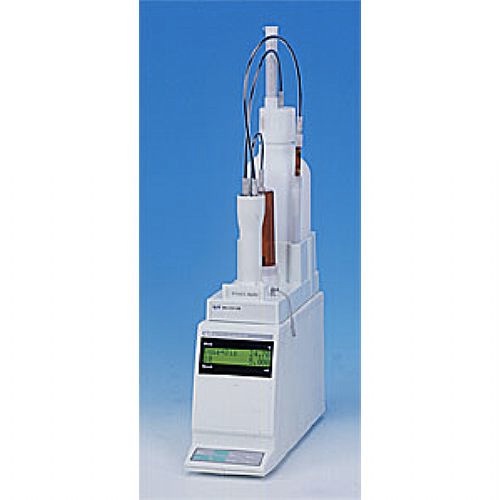

APB-610; Automatic Piston Burette for Auto Titrator; 20mL

APB-600-AT

K434-0173: Application card

K650-7521: Aluminum Cooling Plate

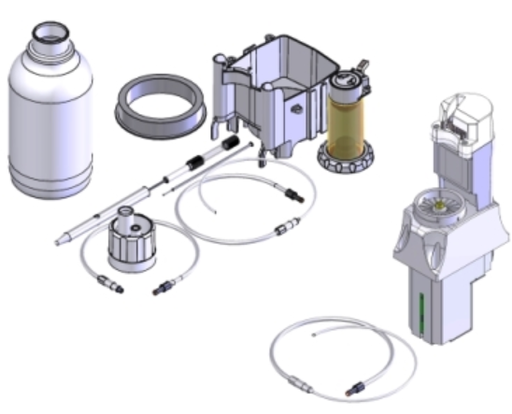

K120564020: K120564020; Additional 2nd burette (Built-in) 20mL for AT-710 series

K320-3199: Adaptor for power connector

K32-03199: Adaptor for power connector

K2005853: Adapter

K59-00419-06:AT-710 Quick Reference

K12-05700:AT-710 Operation Manual(CD-ROM)

K430-0023A: AT-500N Version-up Kit for 2nd buret

K030-5030:APB cable

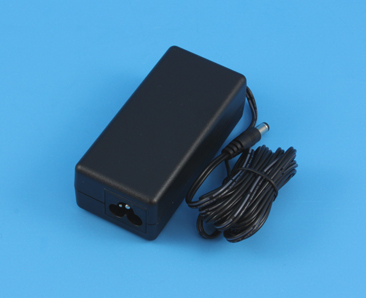

K64-00898:AC Adapter Type4

CHA-700 : Automatic Titrator Multiple Sample Changer

1)Compact Design; This changer can be placed on top of the AT-700/710. You will see how compact it is: equipment width – 365mm.
2)Six-rack Model or Eleven-rack Model; Six racks for samples plus one more rack for immersion cleaning. Holds beakers of 250mL or 200mL.
Eleven-rack model: Holds containers of φ46mm, such as 50mL beakers or 100mL disposable cups.
3) Optional Electrode Cleaning Available; Optional electrode cleaning system can be connected for shower cleaning of electrodes. Furthermore, for six-rack model, shower cleaning (nonaqueous) of electrodes and drain samples from the beaker is available.
4) Different Measurement Methods from One Rack to Another; Individual settings can be made for each rack, which enables you to easily perform measurements of several different
samples.

-Sample Container options; 250mL beaker, 200mL disposable cup, 250mL beaker or 200mL beaker. Additional options include;
100mL disposable cup, 50mL beaker, 100mL beaker or 100mL tall beaker
-Cleaning; Dipping in beaker at fixed position / Shower cleaning (option)
-Rinse Solution; Pure water , alcohol, etc.
-Stirring Device; Propeller stirrer
-Sequence setting; Set from Automatic Potentiometric Titrator
-Sequence control; 1)Auto : started by Automatic Potentiometric Titrator / 2)Manual : operated from Automatic Potentiometric Titrator
-Power Supply; DC24V 1.9A(Main unit) AC100-240V 10% 50/60 Hz(Comes with AC Adapter)
-Dimensions; 365 (W) × 443(D) × 315 (H) mm
-Weight; Approx. 8kg
-CE Marking; EMC : EN61326 / LVD : Conforming to EN61010-1

K660009203: 50mL Beaker
