Refractometer & Brix

K101-K121:Standard cell/117

K101-K111:Standard cell

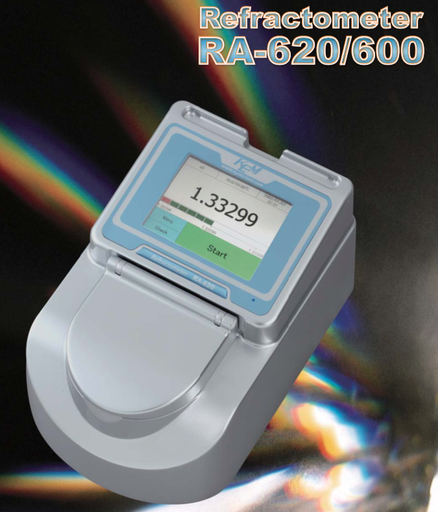

RA-620 Benchtop Refractometer

Specs:

-Measuring Method: Detection of Critical Angle of Optical Refraction
-Light Source: LED Na-D Line (589.3nm)
-Measuring Range: Refractive Index (nD)=1.3200 ~ 1.58000,
Brix=0.00 ~ 100.00%
-Accuracy *1:Refractive Index (nD)=±0.00002,Brix=±0.014%(0~85%)
-Repeatability *2:Refractive Index (nD)=±0.00001,Brix=±0.01%
-Resolution:Refractive Index (nD)=0.00001,Brix=0.01%
-Temperature Control:Peltier Thermostat 5 ~ 75°C *3
-Temperature Indication Resolution:0.01°C
-Minimum Amount of Sample: 0.2mL
-Display:4.7-inch Backlit Colour LCD
-Operation:Touch Screen
-Security:Password Protection
-Data Storage: # of methods=100,Measurement results=up to 300, calibration record=up to 20,Check Record=up to 20, External Storage=USB Flash Drive
-Temperature Compensation: Brix=5.00 75.00 (Automatic compensation by preprogrammed conversion table.)
-Interfaces: LAN, USB1.1,RS-232
-Power Supply:AC 100~240 V, 50/60 Hz (AC adapter supplied with instrument.)
-Dimensions:191(W)×281(D)×161(H)mm
-Weight:5Kg

RA-600 Benchtop Refractometer

Specs:

-Measuring Method: Detection of Critical Angle of Optical Refraction
-Light Source: LED Na-D Line (589.3nm)
-Measuring Range: Refractive Index (nD)=1.3200 ~ 1.7000,
Brix=0.00 ~ 100.00%
-Accuracy *1:Refractive Index (nD)=±0.0001,Brix=±0.1%
-Repeatability *2:Refractive Index (nD)=±0.0001,Brix=±0.1%
-Resolution:Refractive Index (nD)=0.0001,Brix=0.10%
-Temperature Control:Peltier Thermostat 5 ~ 75°C *3
-Temperature Indication Resolution:0.1°C
-Minimum Amount of Sample
-Display:4.7-inch Backlit Colour LCD
-Operation:Touch Screen
-Security:Password Protection
-Data Storage: # of methods=100,Measurement results=up to 300, calibration record=up to 20,Check Record=up to 20, External Storage=USB Flash Drive
-Temperature Compensation: Brix=5.00 75.00 (Automatic compensation by preprogrammed conversion table.)
-Interfaces: LAN, USB1.1,RS-232
-Power Supply:AC 100~240 V, 50/60 Hz (AC adapter supplied with instrument.)
-Dimensions:191(W)×281(D)×161(H)mm
-Weight:5Kg

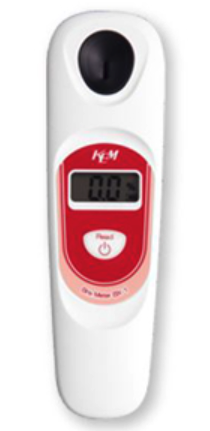

SPECIFICATIONS:
Measuring range: 0.0 ~ 85.0 Brix %
Precision: ±0.2 Brix %
Minimum Resolution: 0.1 Brix %
Temperature compensation function: Yes (10 ~ 75°C)
Display: Brix%
Power source: Two AAA (alkaline) batteries
Battery life: 30,000 measurements*
Dust/water resistance class: IEC529 IP65
Main unit material: ABS resin
Weight: Approx. 100g (Excluding batteries)
Dimension: 45(W)x32(D)x153(H)mm

Application/ Typical samples!
Fruits Vegetables
・Oranges・Apples・Strawberries・Grapes ・Peaches・Cherries・Grapefruits・Pineapples ・Bananas・Melons・Lemons・Tomatoes
Beverages Alcoholic beverages
・Juices・Tea・Cocoa・Sports drink ・Café au lait・Milk product・Lactic acid beverages・Carbonated drinks・Beer ・Whisky・Wine etc.
Foods
・Chocolate・Jelly・Pudding・Curry・Stew ・Soup etc.
Seasonings Sugars
・Soy sauce ・Vinegar・Rice wine・Sauce ・Isomerized sugar・Glucose sugar・Syrup ・Synthetic sweetner etc.

AP3203; Omnidirectional Hotwire Probe Omnidirectional hotwire probe. Measuring range: air speed 0.05 ÷ 5 m/s, temperature 0 ÷ +80 °C. Probe stem Ø 14 mm, length 110 mm. Complete with SICRAM module. Used for PMV measurement.

K101-K122:Low range cell/117

K101-K112:Low range cell

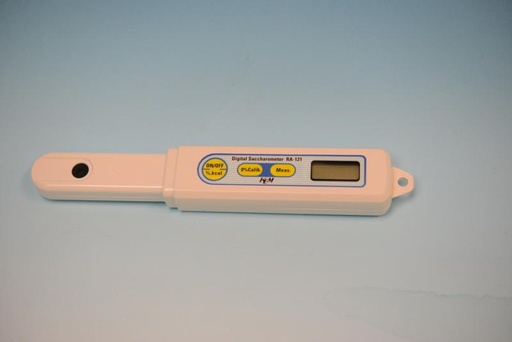

KRA-121: KEM Digital Sacharometer (refractometer)

K101-K123:High range cell/117

K101-K113:High range cell

K101-K222:Feed-through-type low range cell

K101-K221:Feed-through-type Standard cell(w/Temp. compensation)

K101-K211:Feed-through-type Standard cell

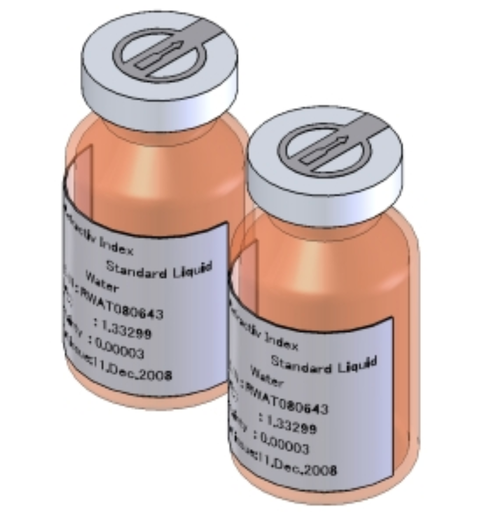

K120408330; Brix Solution (5%) 2x10mL bottles

K120408331; Brix Solution (10%) 2x10mL bottles

K120408333; Brix Solution (0.5%) 2x10mL bottles

K120408332; Brix Solution (0.25%) 2x10mL bottles

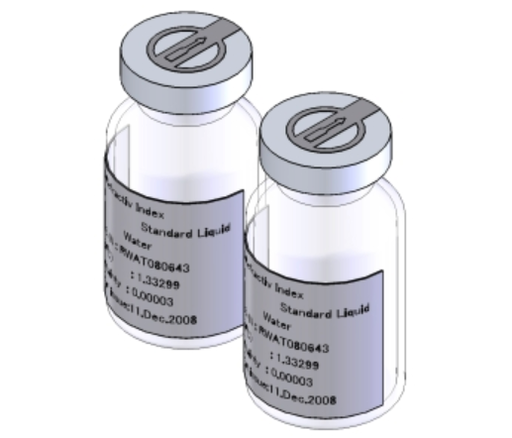

K120161001; RA, Refractometer Standard Liquid/ Water/2 bottles each with JCSS Certificate. -Shelf life: 12 months from date of calibration (not from delivery date) -Bottle Volume: 10mL

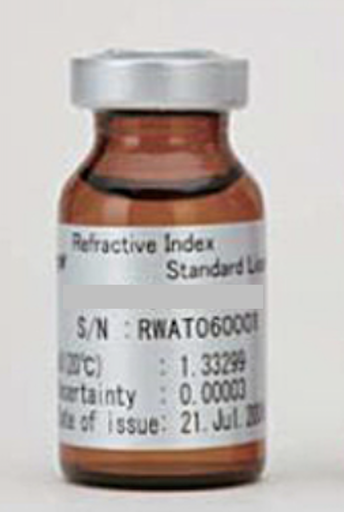

K120407701; RA, Refractometer Standard Liquid/Iso-Octane/Water/1 bottle each with JCSS Certificate. -Shelf life: 12 months from date of calibration (not from delivery date) -Bottle Volume: 10mL; Note Hazardous item and includes hazardous fee.
