K12-006-5300-48 (K740-3340); Cylinder with Piston, 20mL, transparent. For AT500 and AT600 series titrators including EBU-610 and APB-510

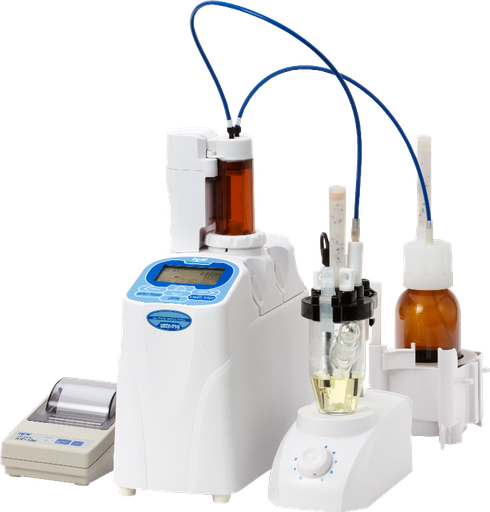

MKV-710B Volumetric Karl Fisher Titrator

Specifications:
-Type: Volumetric Karl Fischer Moisture Titrator

-Model: MKV-710B

-Product configuration: MKV-710+ Manual Solvent Change Unit.

-Measuring method: Karl Fischer Volumetric Titration

-Measuring range:
1. Water content: 0.1 to 500mgH2O (depends on KF reagent factor)
2. 10ppm to 100%H2O

-Burette precision: Volume: 10mL burette, Discharge precision: ±0.015mL repeatability, Repeatability: ±0.005mL

-Endpoint detection: By polarized potential level detected with a twin platinum electrode

-Titration form: Normal titration / Back titration (Option additional burette required)

-Required solvent: 30 to100mL (in S-type titration vessel)

-Methods: 20

-Key Operation: Sheet key on main unit

-Display:
1. White LED-backlit LCD
2. English / Japanese / Mandarin Chinese / Korean / Russian / Spanish
3. 1-channel display

-Calculation: Concentration of water content, statistics data processing (mean, SD and RSD) and automatic averaging of blank value and factor value

-Data storage: 100 samples

-GLP conformance: 􏰄registration of operator / 􏰅Record of check results/ Record of factor measurement / Management of conduction time

-External I/O:
1. RS232C port × 2 (for Dot matrix printer, Electronic balance, Data Capture Software (SOFT-CAP)
2. USB x 1 (for USB flash drive, thermal printer, Keyboard, Barcode reader, Foot switch, USB HUB, Android device)
3. SS-BUS x 1 (for APB)

-Extensibility
1. Automatic piston burette: Can control max 2 burette drives (including two built-in burette drives)

-Ambient Condition:
1. Temperature; 5 to 35°C
2. Humidity; 85%RH or below (no condensation)

-Power Source: AC100 - 240 ±10% 50/60 Hz

-Power Consumption: Main unit; Approx. 20W, Printer; Approx. 7W

-Dimensions:
1. Titration Unit; 141(W) × 292(D) × 367(H) mm (, not incl. tubing)
2. Stirrer; 107(W) × 206(D) × 322(H) mm (not incl. Solvent Change unit)
3. Solvent Change Unit; 240(W) × 140(D) × 400(H) mm (not incl. tubing)
4. Printer; 106(W)× 180(D) × 88(H) mm

-Weight:
1. Titration Unit = 4.0kg,
2. Stirrer = 2.0kg,
3. Solvent Change Unit = 0.6kg,
4. Printer = 0.4kg

-Conformity Standard: CE marking EMC : EN61326-1 LVD: EN61010-1 RE Directive Burette unit EBU FCC Part15 SubpartC FCC ID: 2ABSVEBU01

K640064333; USB Cable (A-A) 0.9m for connecting MCU with add'l titrators

K12-03755-01 (K103-M714): Twin platinum electrode. Volumetric Karl Fischer Detector Electrode

MCU-610 Touch Panel Controller for Titrator

K20-04042-00 (K20-040-4200-48/K710-0032): Titration cell w/drain cock & syringe stopper For Karl Fisher Coulometric Titrator

K200404100 (K20-040-4100-48): Titration cell (transparency) for coulometric Karl Fisher Titrator

K433-0046: Stirrer unit E with cable is a replacement stirrer for the Karl Fisher titrator line including, MKC510N, MKC520

Magnetic Stirrer cable (L=2.5M). If you need to extend the distance between the titrator and the magnetic stirrer choose this longer magnetic stirrer cable.

120139410 (K523-3161S):Septum 12/2 (10pcs/set) for KEM Karl Fischer Titrators
SEPTA; 12MM OUTER DIAMETER * 2MM HEIGHT

SCU-118; For automatic titrators (AT-500 through AT-710 series) working with:
-Highly volatile samples
-Oxygen sensitive and cannot be exposed to the atmosphere
-Nitrogen purging is possible inside of the assembly

K120069610 (K433-0117): Micro sampling unit; Powder Sampling for Coulometric Karl Fischer Titrators

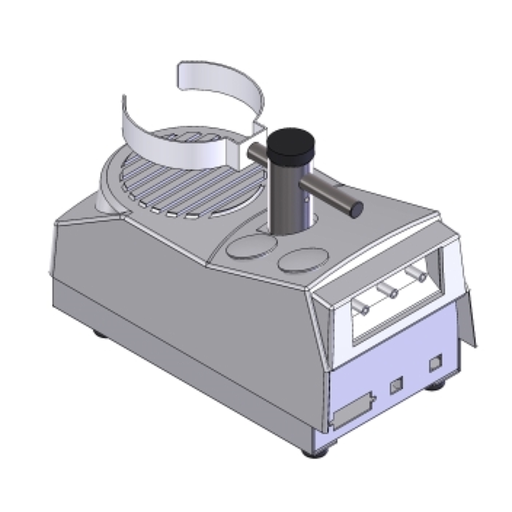

K12-001-8600-48 (K433-0050): Magnetic stirrer for Karl Fischer Titrator MKC510N/ MKC520

KAT-Win/2nd Software for Automatic Titrator

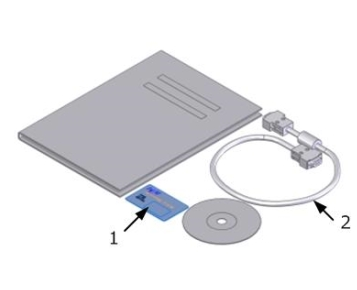

KAT-WIN Software for Automatic Titrator

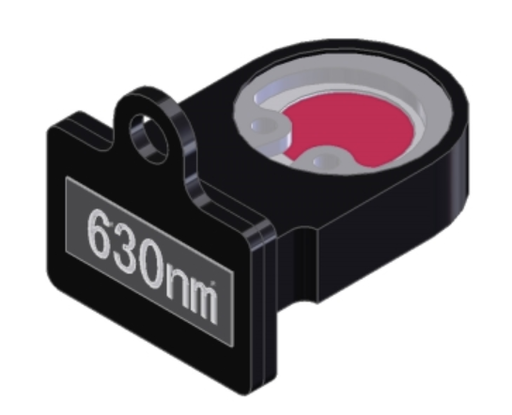

K1200112-01: Interference Filter (630nm) for AT 710 titrator

K1207105 (1205195/1201262/984330006): Inner Burette (2-component) for KEM Karl Fisher titrators; MKC500, 600 and 700 series.

A solvent for Volumetric Karl Fischer titrators. This solvent is designed to work with Hydranal Composites (specifically Composite 5K or Keto Solver) This solvent contains chloroethanol and chloroform. For the determination of water in aldehydes and ketones.

A solvent for Volumetric Karl Fischer titrators. This solvent is designed to work with Hydranal Composites (specifically Composite 5K or Keto Solver) This solvent contains chloroethanol and chloroform. For the determination of water in aldehydes and ketones.

A water standard for Coulometric and Volumetric Karl Fischer titrators (10,000PPM). A certified standard containing 10.0mg of H2O per g (1g = 1.16ml). A manufacturer's test certificate with exact specifications is included. 80ml is packaged as 10x8ml ampules.
